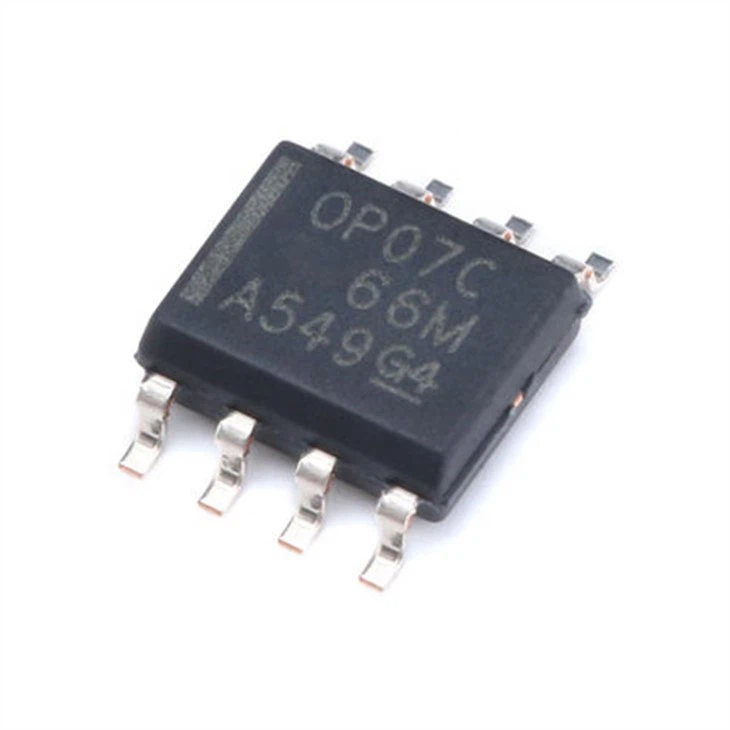

Mã sản phẩm : OP07CDR
Hãng sản xuất: Texas Instruments
Description: IC OPAMP GP 1 CIRCUIT 8SOIC
SPECIFICATION:
| Product Category: | Precision Amplifiers | |
| RoHS: | ||
| 1 Channel | ||
| 600 kHz | ||
| 300 mV/us | ||
| 60 uV | ||
| 1.8 nA | ||
| 18 V | ||
| 3 V | ||
| 2 mA | ||
| 1.2 mA | ||
| 120 dB | ||
| 10.2 nV/sqrt Hz | ||
| SOIC-8 | ||
| SMD/SMT | ||
| No Shutdown | ||
| 0 C | ||
| + 70 C | ||
| OP07C | ||
| Reel | ||
| Cut Tape | ||
| MouseReel | ||
| Amplifier Type: | Low Offset Amplifier | |
| Brand: | Texas Instruments | |
| Dual Supply Voltage: | +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V | |
| Height: | 1.58 mm | |
| In – Input Noise Current Density: | 0.35 pA/sqrt Hz | |
| Length: | 4.9 mm | |
| Maximum Dual Supply Voltage: | +/- 18 V | |
| Minimum Dual Supply Voltage: | +/- 3 V | |
| Operating Supply Voltage: | 6 V to 36 V, +/- 3 V to +/- 18 V | |
| Pd – Power Dissipation: | 150 mW | |
| Product: | Precision Amplifiers | |
| Product Type: | Precision Amplifiers | |
| Subcategory: | Amplifier ICs | |
| Supply Type: | Single, Dual | |
| Technology: | Bipolar | |
| Voltage Gain dB: | 112.04 dB | |
| Width: | 3.91 mm | |
| Unit Weight: | 72.600 mg |
